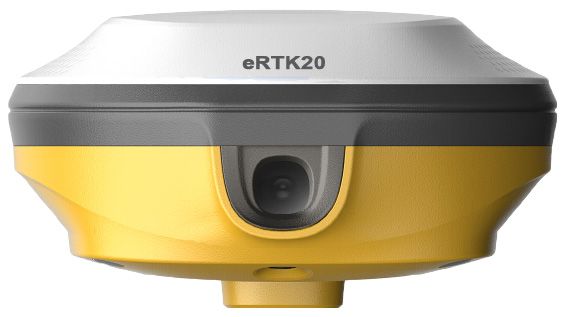

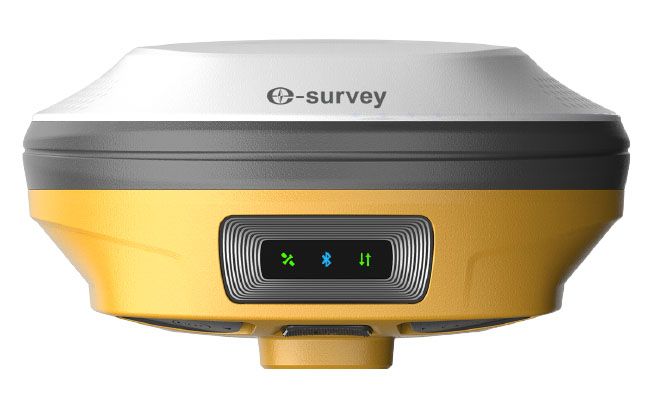

The eSurvey eRTK20 GNSS receiver combines GNSS, IMU, wide-angle dual cameras, and a compact design to dramatically improve surveying efficiency. The CAD AR visual stakeout can increase project stakeout efficiency by 40%. With inbuilt radio (Tx and Rx) and a 60° inclination IMU function, the eRTK20 is ideal for any survey scenario.
CAD AR Stakeout:
Improved Efficiency CAD drawings are directly marked on the Surpad interface, so no need to
choose each point individually. The CAD AR stakeout is a highly effective tool for optimizing stakeout operations and simplifying complex construction tasks in a variety of construction
scenarios. The eRTK20 improves stakeout productivity by 40% by combining CAD base maps and augmented reality (AR) visualization
Max 60° Tilt Survey:
- A Different Way of Working
- Accurately measure points while standing or walking without leveling the pole.
- Focus on where the pole tip should go, especially during stakeouts.
- Conveniently conduct surveys in difficult-to-reach areas such building corners and slopes.
- No need to worry about the movement of the pole when measuring, as long as it remains steady
Multi-Constellation and Multi-Frequency
With 1408 GNSS tracking channels, it ensures robust and reliable accuracy while also being extremely resistant to multipath effects and interference. All GNSS signals come with the standard including GPS, BDS, GLONASS, Galileo, QZSS, NavIC, SBAS
and L-Band
Tx/Rx UHF Modem and 4G Modem
The built-in worldwide 4G Network and Tx/Rx UHF modem enable eRTK20 to transmit GNSS corrections seamlessly regardless of the operating environment. The eRTK20 is compatible with traditional major radio protocols.
